AMD Ryzen 7 7800X3D CPU, AM5, 4.2GHz (5.0 Turbo), 8-Core, 120W, 104MB Cache, 5nm, 7th Gen, Radeon Graphics, NO HEATSINK/FAN

Pcode
30537

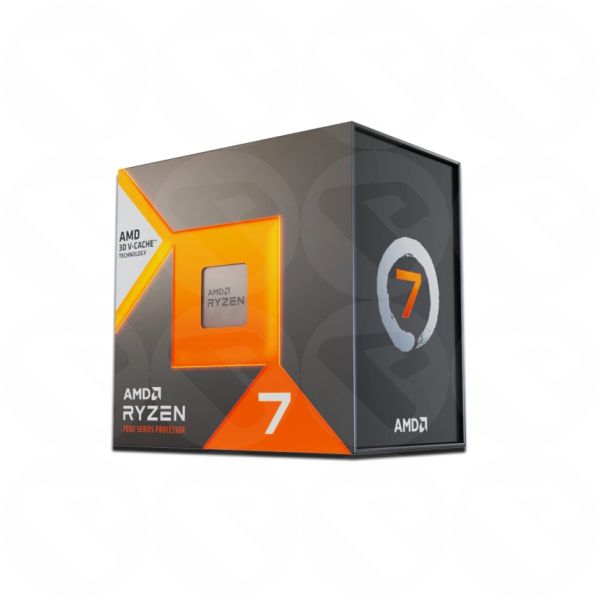

main product photo
£439.00
In stock

The Dominant Gaming Processor, with AMD 3D V-Cache™ Technology for Even More Game Performance

Whatever the setting, whatever the resolution, lead your team to victory with this incredible gaming processor. Plus, enjoy the benefits of next-gen AMD 3D V-Cache™ technology for low latency and even more game performance.

Categories: Components, Processors, AMD Ryzen
General Specifications
Platform
Desktop

Market Segment
Enthusiast Desktop

Product Family
AMD Ryzen™ Processors

Product Line
AMD Ryzen™ 7 Processors

AMD PRO Technologies
No

Consumer Use
Yes

Regional Availability
Global

Former Codename
"Raphael AM5"

Architecture
"Zen 4"

# of CPU Cores
8

Multithreading (SMT)
Yes

# of Threads
16

Max. Boost Clock
Up to 5.0GHz

Base Clock
4.2GHz

L1 Cache
512KB

L2 Cache
8MB

L3 Cache
96MB

Default TDP
120W

Processor Technology for CPU Cores
TSMC 5nm FinFET

Processor Technology for I/O Die
TSMC 6nm FinFET

CPU Compute Die (CCD) Size
71mm²

I/O Die (IOD) Size
122mm²

Package Die Count
2

AMD EXPO™ Memory Overclocking Technology
Yes

Precision Boost Overdrive
Yes

Curve Optimizer Voltage Offsets
Yes

AMD Ryzen™ Master Support
Yes

CPU Socket
AM5

Supporting Chipsets
A620
X670E
X670
B650E
B650

CPU Boost Technology
Precision Boost 2

Instruction Set
x86-64

Supported Extensions
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermal Solution (PIB)
Not included

Recommended Cooler
Liquid cooler recommended for optimal performance

Max. Operating Temperature (Tjmax)
89°C

Launch Date

*OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
USB Type-C® Support
Yes

Native USB 3.2 Gen 2 (10Gbps) Ports
4

Native USB 3.2 Gen 1 (5Gbps) Ports
0

Native USB 2.0 (480Mbps) Ports
1

Native SATA Ports
0

PCI Express® Version
PCIe® 5.0

Native PCIe® Lanes (Total/Usable)
28 / 24

Additional Usable PCIe Lanes from Motherboard
AMD X670E

12x Gen4

AMD X670

12x Gen4

AMD B650E

8x Gen4

AMD B650

8x Gen4

NVMe Support
Boot, RAID0, RAID1, RAID10
System Memory Type
DDR5
Memory Channels
2
Max. Memory
128GB
System Memory Subtype
UDIMM
Max Memory Speed
2x1R

DDR5-5200

2x2R

DDR5-5200

4x1R

DDR5-3600

4x2R

DDR5-3600

ECC Support
Yes (Requires mobo support)
Graphics Capabilities
Integrated Graphics
Yes
Graphics Model
AMD Radeon™ Graphics
Graphics Core Count
2
Graphics Frequency
2200 MHz
USB Type-C® DisplayPort™ Alternate Mode
Yes
Product IDs
Product ID Boxed
100-100000910WOF
Product ID Tray
100-000000910
Key Features
Supported Technologies
AMD EXPO™ Technology
AMD Ryzen™ Technologies
Part Number 100-100000910WOF
EAN / UPC 730143314930
