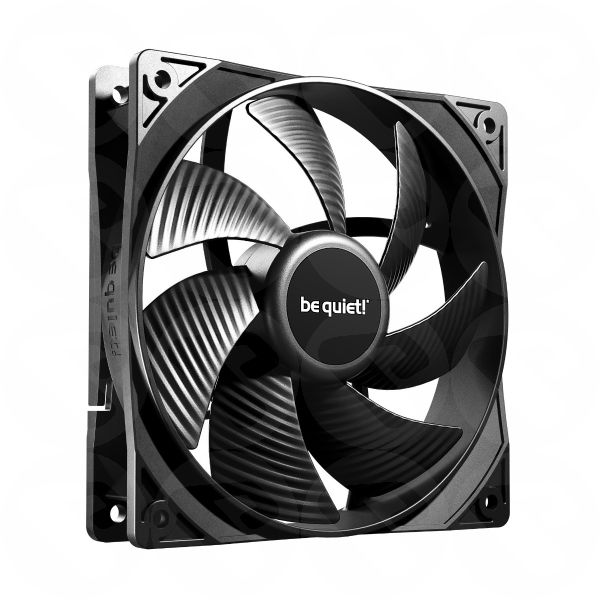

BeQuiet! Pure Wings 3, Rifle Bearing, Black, 120mm Fan
Pcode
30692
£10.00
In stock
PURE WINGS 3
120mm
Performant, Progressive, Quiet
With low minimum rpm and high top-end speed, Pure Wings 3 120mm are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting, companion for your gaming system.
- Optimized fan frame for outstanding performance on radiators
- Newly designed fan blades and re-arranged angle for extraordinary air pressure
- Pure Wings 3 120mm can be operated with very low minimum rpm for very quiet operation
- Long life rifle bearing gives an operating lifetime of 80,000 hours
- Product conception, design and quality control in Germany
Categories: Components, Cases, Cooling Fans & Accessories
General data
| Model | Pure Wings 3 120mm |
| Dimensions (mm) | 120 |
| Color option | Black |
| Lighting | - |
| Fan speed @ 100% PWM / 12V (rpm) | 1600 |
| Noise level @ 100% PWM / 12V (dB(A)) | 25.5 |
| Air Flow @ 100% PWM / 12V (CFM / m3/h) | 49.9 / 84.8 |
| Air Pressure @ 100% PWM / 12V (mm H2O) | 1.45 |
Mechanical specifications
| Dimensions (L x W x H), (mm) | 120 x 120 x 25 |
| Weight incl. fixed cables (g) | 147 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | - |
| Screw fixing | ✓ |
Cables / Connectors
| Daisy-chain compatible | - |
| Lighting connector | - |
| Connector | 3-pin |
| Cable length (mm) | 460 |
| Cable sleeve | - |
Performance / Noise
| Air Flow @ 100% PWM / 12V (CFM / m3/h) | 49.9 / 84.8 |
| Air Pressure @ 100% PWM / 12V (mm H2O) | 1.45 |
| Noise level @ 100% PWM / 12V (dB(A)) | 25.5 |
| Lifespan (h / 25°C) | 80,000 |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Current consumption (A) | 0.10 |
| Safety current (A) | 0.20 |
| Input power (W) | 2.4 |
| Rated Current LED (A) | - |
Accessories
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | 4 |
| Push pins | - |
| hard plastic washer | - |
| Others | - |
Safety certification
| Approvals | CE / RoHS / RU / UKCA / WEEE |
Environmental directives
| RoHS | ✓ |
| WEEE | ✓ |
| Triman | ✓ |
| Part Number | BL104 |
|---|---|
| EAN / UPC | 4260052190760 |
