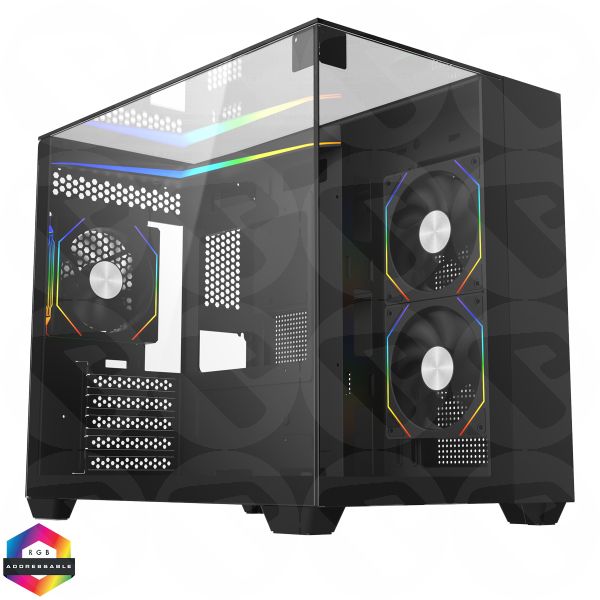

CiT Eclipse Black Micro-ATX Gaming Case Tempered Glass LED Strip, 3 x 120mm CiT Eclipse Infinity ARGB Fans - CIT-ECLIPSE-ARGB
Raise expectations with the CiT Eclipse, it is perfect for the enthusiast who loves the look of dual-chamber cases but wants to build a small form factor PC. This high-performance Micro-ATX chassis has three sides constructed from tempered glass which sets it apart from its peers providing a phenomenal aesthetic and offers an uninterrupted view of all your gaming hardware.
Any hardware that you choose to install in the Eclipse will be able to operate at peak performance. The cooling fans used are the newest fans to be added to the CiT range, three pre-installed CiT Eclipse fans are sleek and stylish, beautifully illuminating the internal of this elegant chassis they will keep your gaming PC at optimum temperatures. Comprehensive cooling within the Eclipse that has room for a further three fans to be added and a 360mm liquid cooling radiator on the bottom, the Eclipse has taken on the highly popular dual chamber style which lets you have your all-important hardware on display while keeping your drives, cables and power supply hidden away.
Moving onto the top of the case the I/O panel provides USB3.0 connections and inside the Eclipse we have included a 6-port PWM ARGB hub with controls for your LED lighting and have access to approximately 75 LED modes or have access to 16.8 million colours using a compatible addressable RGB Motherboard.
In addition to the Eclipse's stylish looks this completely black interior has space for a Mini-ITX or Micro-ATX Motherboard with huge build potential with a spacious open interior and plenty of cable management to build a powerful dynamic gaming PC. It can fit a graphics card up to 41.5 centimetres in length, CPU Cooler up to 17 centimetres in height, ATX PSU, alongside a storage device which can hold 3 x 2.5” SSDs and 2 x 3.5” HDDs.
Upgrade your aesthetic with the Eclipse and create an impressive-looking PC case which is a powerhouse this chassis is a stunning addition to your gaming set-up that gamers desire.
Showcase Your Gaming PC - The CiT Eclipse finished in all black and is constructed with three sided tempered glass, 4mm tempered glass front, top and side panels with 30% tint this stunning design gives the chassis a standout and elegant look. Allows for a 270-degree side visibility with unreal display potential the Eclipse offers an uninterrupted view of all your gaming hardware.
Dual Chamber Layout - Different from traditional computer cases the Eclipse is designed using a dual chamber layout which provides plenty of space for your hardware, good airflow & ventilation, cable management and guarantees you can create a beautiful build. The dual chamber design allows you to situate your power supply, hard drives and cables in the rear chamber freeing up the main chamber for your fan and radiator mounting points creating an unrestricted view of your components that matter.
Sleek & Sharp Cooling Fans - Gain style and thermal power with the three pre-installed fans, this elegant stylish looking hydraulic bearing fan with an aluminium centre it is the perfect addition, the ARGB lighting is vibrant and stunning and with an 800 to 1600 RPM PWM control range. The Eclipse makes it easy to equip your PC with silent cooling that can be adjusted for the perfect balance in airflow that your system needs.
Fan Frame - A visually stunning cooling fan complements the Eclipse and adds to the aesthetic appeal of this impressive Micro. The Eclipse fan oozes style and class with 4 thin LED strips, two on both sides of the fan blade and two on the top and bottom of the fan frame and finished off with a touch of infinity mirror on both sides of the frame, the infinity mirror follows the front ARGB lighting strips in a top and bottom pattern that creates a 3D indented look.
Fan Controller Included - A PWM hub is included inside the Eclipse which allows you to add up to 6 case fans and is powered directly from your power supply via SATA. You can access it using the LED button and it's connected to the Motherboard using a single cable - you can setup without any additional cables.
PWM Fan Control - The hub can be connected to the CPU fan interface on your chosen Motherboard to access temperature readings. An increased CPU temperature increases the fan speed automatically and swiftly cools the system down. Conversely when the CPU temperature decreases the fan automatically slows reducing the overall noise.
Motherboard Software - The ARGB lighting effects can be synced through the Motherboard which supports ARGB function, 5V 3-Pin Addressable RGB header, including ASUS AURA, MSI Mystic Light, Gigabyte Fusion 2.0 & ASRock. Customise the look with endless possibilities with 16.7 million static modes and 12 pre-set lighting effects.
ARGB LED Strip - The Eclipse features an angled ARGB strip at the back of the chassis that syncs with the pre-installed cooling fans and can be synced with the Motherboard creating a beautiful aesthetic.
Micro-ATX Housing - Standing at 374mm high, 286mm wide and 428mm deep the Eclipse is compatible with a wide range of components, with 415mm of clearance for GPUs and it can facilitate CPU coolers up to 170mm tall. Additionally the I/O panel located at the top possesses two USB3.0 ports, HD-Audio, Mic & LED / Reset button. There are five expansion slots on the rear panel for PCIe devices.
Specifications
Chassis Dimensions (Excluding Fascia / Panels):
(W) 286 x (H) 356 x (D) 428mm
Water Cooling Support:
Motherboard Supported Radiator(s):
120mm, 240mm & 280mm
Bottom Supported Radiator(s):
120mm & 240mm & 360mm
Rear Supported Radiator(s):
120mm
CiT Eclipse Infinity PWM ARGB Fan Specification:
Fan Frame Colour:
Black
Fan Blade Qty / Colour:
9 / Black
LED Qty / Type:
16 / ARGB
Bearing Type:
Hydraulic Bearing
Fan Speed:
PWM 800 - 1600RPM
Max. Air Flow (Max.):
47.3CFM
Max. Static Air Pressure:
1.6mm-H2O
Noise Level (Max.):
25 dBA
Cable Length:
600mm
Accessories:
Screws
Connectors:
3pin (Addressable) AURA Connector / 3pin (Addressable) AURA (Male) Link Connector / 4pin PWM Power Connector / 3pin Male Splitter Cable
Rated Voltage:
12V
Rated Current (Max.):
0.25A
Rated Input Power (Max.):
5V
Test Voltage:
12V
Start Voltage:
12V
M.T.B.F.:
30,000 Hours
3 x 120mm CiT Eclipse Infinity PWM ARGB Fans Included:
Fan Powered Via:
4pin PWM
Fan LEDs Powered Via:
3pin AURA
Fan Controller Support:
Fan Controller Included:
Yes
Fan Controller Power Via:
SATA Connector
LED Controller:
Yes
Fan Power Connector:
3 or 4pin
LED Power Connector:
3pin AURA
Fan Control Via:
LED Button or MB Sync
Supported Qty of Fans (Max.):
6
Supported Qty of LEDs (Max.):
6
Additional Chassis Specifications:
Motherboard Max. Size:
(W) 244 x (D) 247mm
PSU Max. Length:
220mm
PSU Location:
Rear Bottom
Cable Management:
45mm (Front) & 95mm (Rear Top)
HD Audio Ports:
Combined Headphone / Mic
Dust Filters:
1 x Bottom
Case Specifications
Form Factor:
Micro ATX
Motherboard Support:
Micro ATX, Mini ITX
PSU Support:
Standard ATX
PSU Location:
Bottom
Gaming Case:
Yes
Water Cooling:
Water Cooling Ready!
Body Material:
0.7mmSPCC
Front Bezel Material:
30 Percent Tinted Tempered Glass
Side Panel:
30 Percent Tinted Tempered Glass
Internal Cable Management Depth:
95mm
External Bays:
Internal Bays:
2 x 3.5” Internal
3 x 2.5” Internal
Drive Bay Notes:
1 x 3.5" shares 2 x 2.5" & 1 x 3.5" shares 1 x 2.5"
Expansion Slots:
5 x Full Size
Cooling Front:
None
Cooling Top:
None
Cooling Rear:
Space For 1 x 120mm Fan (1 x 120mm CiT Eclipse Infinity ARGB Fan Included)
Cooling Side:
Space For 2 x 120mm or 2 x 140mm Fans (2 x 120mm CiT Eclipse Infinity ARGB Fans Included)
Cooling Bottom:
Space For 3 x 120mm Fans
Fan Controllers:
1 Fan Controllers, controlling up to 6 fans in total
IO Ports:
2 x USB 3.0
1 x HD Audio
GPU Max Length:
415mm
CPU Cooler Maximum Height:
170mm
Front Bezel Colour:
Black & Smoked Glass
Body Colour:
Black
System Cabinet Features:
PSU Included:
No
General Specifications
Manufacturer Part Number:
CIT-ECLIPSE-ARGB
EAN Number:
5055492415165
Has Mains Plug:
No
Colour:
Black
What's In The Box:
Case
Accessories
Manual
Unit (Product) Dimensions (mm):
286mm x 374mm x 428mm (W x H x D)
Packaging Dimensions (mm):
365mm x 525mm x 425mm (W x H x D)
Net Weight (KGs):
6.9 KGs
Gross Weight (KGs):
8.8 KGs
| Part Number | CIT-ECLIPSE-ARGB |
|---|---|
| EAN / UPC | 5055492415165 |
