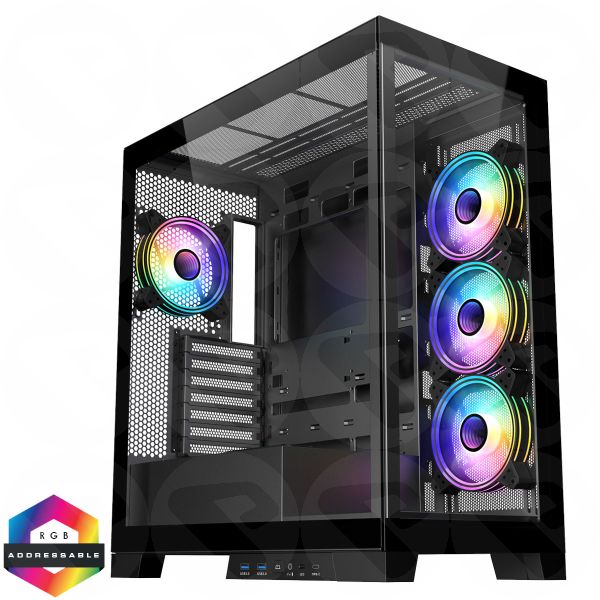

CiT Pro Diamond XR Black Mid-Tower Gaming Case with 4mm Tempered Glass Front and Side Panels and 4 x CF120 Dual-Ring Infinity Fans
If you want a sharp-looking, cool-running decent-sized Gaming Rig then look no further than the CiT Pro Diamond XR. Combining the smart, sharp aesthetics of the Tempered Glass Front and Side Panels to showcase your build with the striking and extremely functional full-on Hex-Mesh Design, you can literally get the best of both worlds!
The Diamond XRs open design gives you a multitude of options to match your building desire. Motherboard-mounted, top and rear mesh give you multiple options for Water Cooling, with support for up to a 360mm Radiator on the MB or top and a 120mm Radiator on the rear, with fan mountings for 120mm or 140mm fans in all locations.
This fluid design gives the Diamond XR the ultimate cooling capability that can be tailored to your hardware. With an additional cooling option on the PSU Shroud for a 120mm or 140mm fan on top, you can confidently build the highest spec PC knowing that your temperatures are taken care of.
The 4mm-thick Tempered Glass Front & Side Panels allow you to fully display your pride and joy build. With 27mm of cable management depth and multiple pass-throughs, a neat finish is easy to accomplish. Graphics Card support for up to 435mm and CPU Cooler support of up to 180mm allows plenty of room for the latest cards and coolers.
The Diamond XR comes in multiple configurations - this version is the 4-Fan that comes bundled with 4 x CiT Pro CF120 ARGB Dual-Ring Infinity Fans. There are also the 7-Fan version for extra cooling, and the blank canvas version, which leaves it open for you to fit the fans you want where you want.
Key Features
- Four CiT Pro CF120 ARGB Dual-Ring Infinity Fans Bundled - This version of the CiT Pro Diamond XR comes bundled with 4 x CiT Pro CF120 ARGB Dual-Ring Infinity Fans - Perfect for great cooling when planning to use an AIO Cooler, as this virtually maximises your cooling setup. With 20 ARGB LEDs each, the Dual-Ring and the circular-shaped, multi-layer Infinity Mirror Design, the CF120 fans add a mesmerising LED lighting display to the Diamond XR. Please note the fans are included inside the box only and will need to be installed.
- Best of Both Worlds - Combining the smart, sharp aesthetics of the 4mm Tempered Glass Front and Side Panels to showcase your build with the striking and extremely functional full-on Hex-Mesh Design, you can literally get the best of both worlds!
- Diamond XRs Open Design - The Diamond XR gives you a multitude of options to match your building desire. Motherboard-mounted, top and rear mesh give you multiple options for Water Cooling, with support for up to a 360mm Radiator on the MB or top and a 120mm Radiator on the rear, with fan mountings for 120mm or 140mm fans in all locations.
- Ultimate Cooling Capability - This fluid design gives the Diamond XR the ultimate cooling capability that can be tailored to your hardware. With an additional cooling option on the PSU Shroud for a 120mm or 140mm fan on top, you can confidently build the highest spec PC knowing that your temperatures are taken care of.
- Uniquely Positioned Fast I/O - Sporting the latest USB3.1 Type-C Port, 2 x USB3.0 and HD Audio Ports, the Diamond XR has these positioned on the front of the Tempered Glass Window side, making them especially handy for desktop gaming setups.
- Stunning, Neat Building a Breeze - The 4mm-thick Tempered Glass Front & Side Panels allow you to fully display your pride and joy build. With 27mm of cable management depth and multiple pass-throughs, a neat finish is easy to accomplish. Graphics Card support for up to 435mm and CPU Cooler support of up to 180mm allows plenty of room for the latest cards and coolers.
- Easy Building - The Diamond XR comes with top-quality side panels that can be removed easily with a moderate pull, meaning they are secure but the internals can very easily be accessed by hand without tools for a smooth building and upgrading experience.
Specifications
Chassis Dimensions (Excluding Fascia / Panels): | (W) 234 x (H) 480 x (D) 450mm |
Water Cooling Support: | |
Motherboard Supported Radiator(s): | 120mm/240mm/280mm/360mm |
Top Supported Radiator(s): | 120mm/240mm/280mm/360mm |
Rear Supported Radiator(s): | 120mm |
GPU Max Length: | 430mm (with no water cooler on motherboard ) / 271mm (water cooler installed on motherboard) |
PSU Max. Length: | 270mm |
Packaging Type: | EPE Foam and Cardboard |
Packaging Thickness: | 25.25mm |
CiT Pro CF120 ARGB Dual-Ring Infinity Fan Specification: | |
Dimensions: | 120 x 120 x 25mm |
Fan Frame Colour: | Black |
Fan Blades / Colour: | 7 / Semi-Transparent White |
LED Qty / Type: | 20 / ARGB |
Bearing Type: | Hydraulic Bearing |
Fan Speed: | 1200 RPM Plus/Minus 10 Percent |
Max. Air Flow: | 26.0 CFM |
Max. Static Air Pressure: | 0.55mm-H2O |
Noise Level (Max.): | Less Than Or Equal To 22.0 dBA |
Cable Length: | 550 Plus/Minus 10mm |
Accessories: | Screws |
Connectors: | 3pin (Addressable) AURA Connector / 3pin (Addressable) AURA (Male) Link Connector / 3pin Power Connector |
Rated Voltage: | 12V |
Rated Current (Max.): | Less Than Or Equal To 0.15A |
Rated Input Power: | 1.6W |
Test Voltage: | 12V |
Start Voltage: | 5V |
M.T.B.F: | 30,000 Hours |
Case Specifications
Form Factor: | Midi Tower |
Motherboard Support: | ATX, Micro ATX, Mini ITX |
PSU Support: | Standard ATX |
PSU Location: | Bottom |
Gaming Case: | Yes |
Water Cooling: | Water Cooling Ready! Supported Radiator Size: 360mm Supported Radiator Positions: Front, Top |
Body Material: | 1.02mmSPCC |
Front Bezel Material: | 4mm Tempered Glass |
Side Panel: | 4mm Tempered Glass |
Internal Cable Management Depth: | 27mm |
External Bays: | |
Internal Bays: | 2 x 3.5” Internal 1 x 2.5” Internal |
Drive Bay Notes: | |
Expansion Slots: | 7 x Full Size |
Cooling Front: | None |
Cooling Top: | Space for 3 x 120mm or 2 x 140mm (Not Included) |
Cooling Rear: | Space for 1 x 120mm or 1 x 140mm (Bundled to Fit) |
Cooling Side: | Space for 3 x 120mm or 3 x 140mm (On M/B Cover - 3 x Bundled to Fit) |
Cooling Bottom: | Space for 1 x 120mm or 1 x 140mm (Not Included) |
IO Ports: | 1 x USB 3.1 Type C 2 x USB 3.0 1 x HD Audio 1 x Microphone |
GPU Max Length: | 435mm |
CPU Cooler Maximum Height: | 180mm |
Front Bezel Colour: | Black |
Body Colour: | Black |
System Cabinet Features: | |
PSU Included: | No |
General Specifications
Manufacturer Part Number: | CIT-P-XR-DIA-B-4 |
EAN Number: | 5055492414489 |
Has Mains Plug: | No |
Colour: | Black |
What's In The Box: | Case Accessory Pack Manual 4 x CiT Pro CF120 ARGB Dual-Ring Infinity Fans |
Unit (Product) Dimensions (mm): | 234mm x 504mm x 456mm (W x H x D) |
Packaging Dimensions (mm): | 332mm x 550mm x 587mm (W x H x D) |
Net Weight (KGs): | 10.6 KGs |
Gross Weight (KGs): | 12.9 KGs |
Part Number | CSCITPRODIAMONDXRB4 |
---|---|
EAN / UPC | 5055492414489 |
