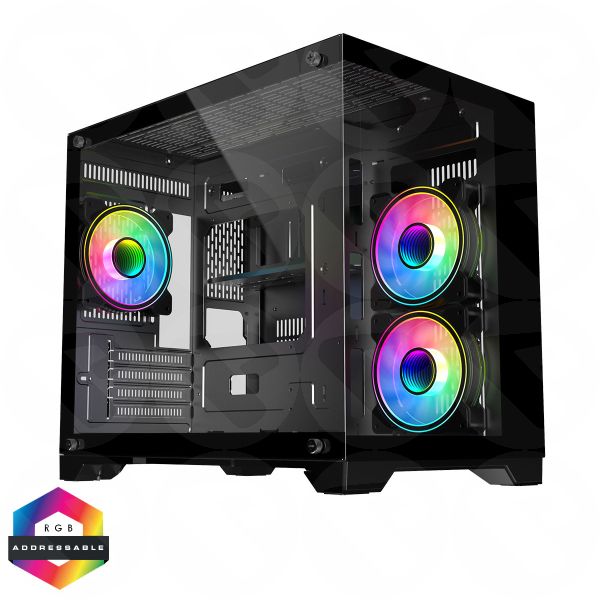

Concept Black MATX Gaming Cube with Tempered Glass Front and Side Panels with 3 x CiT Celsius Dual-Ring Infinity Fans Bundled
Elevate your set up with the CiT Concept Micro-ATX gaming case. This unique MATX chassis is a high-performance product with a sleek design and exceptional functionality. Utilising two full tempered glass panels to provide a perfectly clear view of your interior, show off your gaming hardware.
Designed to focus on elegant and stylish aesthetics, customisable RGB lighting, extremely efficient cooling and easy cable management. Creating a perfect picture frame for your Motherboard and GPU and surround them from all angles with high-performance fans. Install up to a huge nine 120mm fans, together with up to four water cooling locations.
Moving onto the top of the case the I/O panel provides USB3.0 and USB2.0 connections and inside the Concept we have included a PWM ARGB fan hub with controls for your LED lighting and have access to approximately 365 LED modes or have access to 16.8 million colours using a compatible addressable RGB Motherboard.
This completely black interior has massive build potential with a spacious open interior and plenty of cable management to build a powerful compelling gaming PC. It can fit a graphics card up to 40 centimetres in length, CPU Cooler up to 15.7 centimetres in height and can hold 3 x 2,5 and 2 x 3,5 drives. An ATX power supply unit measuring up to 200mm will fit inside.
Build a charismatic aggressive gaming chassis with the Concept and create a flawless gamers case with its elegant design this chassis is a perfect choice for gamers seeking both style and functionality.
Key Features
- Panoramic View - The CiT Concept is an excellent case to showcase your building skills. With a unique and stylish design with dual tempered glass panelling on the front and side of the chassis allows you to have an unobstructed view of your gaming hardware letting you construct a gaming PC that looks good from every angle.
- Dual Chamber Layout - Different from traditional computer cases the Concept is designed using a dual chamber layout which provides plenty of space for your hardware, good airflow & ventilation, cable management and guarantees you can create a beautiful build. The dual chamber design allows you to situate your power supply, hard drives and cables in the rear chamber freeing up the main chamber for your fan and radiator mounting points creating an unrestricted view of your components that matter.
- Three CiT Celsius Infinity 120mm ARGB Dual-Ring Black Fans Bundled - This version of the CiT Concept comes bundled with 3 x CiT Celsius Infinity 120mm ARGB Dual-Ring Black Fans - As a PWM fan (Pulse-Width Modulation) its rotation speed can be user controlled by connecting the fan to a compatible motherboard or fan controller. As a result users can choose whether they want the fan to run quietly or have enhanced airflow. With Dual-Ring and the circular-shaped, multi-layer Infinity Mirror Design, the Infinity fans add a mesmerising LED lighting display to the Concept. Please note the fans are included inside the box only and will need to be installed.
- Fan Controller Included - A PWM hub is included inside the Concept which allows you to add 6 case fans and powered directly from your power supply via SATA you can have access to using the LED button and its connected to the Motherboard using a single cable you can do it without any additional cables.
- PWM Fan Control - The hub can be connected to CPU fan interface on your chosen Motherboard to access temperature readings. The CPU temperature increases the fan automatically increases its speed and swiftly cools down and when the CPU temperature decreases the fan automatically slows reducing the overall noise.
- Motherboard Software - The ARGB lighting effects can be synced through the Motherboard which supports ARGB function, 5V 3-Pin Addressable RGB header, including ASUS AURA, MSI Mystic Light, Gigabyte Fusion 2.0 & ASRock. Customise the look with endless possibilities with 16.7 million static modes and 12 pre-set lighting effects.
- Available In Two Colours - The CiT Concept is available in two colours, black or white. The model of the Concept is the black, the perfect backdrop for high-end hardware and RGB lighting.
- Outstanding Cooling - Support for up to nine fans in total Top: 3 x 120mm or 2 x 140mm Fans, Motherboard: 2 x 120mm Fans, Rear: 1 x 120mm Fan & Bottom: 3 x 120mm or 2 x140mm Fans. The Micro-ATX casing can also house a 360mm radiator at the top and bottom keeping the internal temperature at an optimum level.
- Micro-ATX Housing - Standing at 377mm high, 278mm wide and 416mm deep the Concept can accommodate the latest powerful components with 400mm of clearance for GPUs and can facilitate CPU coolers up to 157mm tall.
Specifications
Chassis Dimensions (Excluding Fascia / Panels): | (W) 278 x (H) 351 x (D) 413mm |
Water Cooling Support: | |
Top Supported Radiator(s): | 120mm, 240mm, 280mm and 360mm |
Rear Supported Radiator(s): | 120mm |
Other Supported Radiator(s): | |
Bottom: | 120mm, 240mm, 280mm and 360mm |
MB Plate: | 120mm and 240mm |
Fan Controller Support: | |
Fan Controller Included: | Yes |
Fan Controller Power Via: | SATA Connector |
LED Controller: | Yes |
Fan Power Connector: | 4pin Fan Connector |
LED Power Connector: | 3pin Aura |
Fan Control Via: | LED Button / MB Sync |
Supported Qty Of Fans (Max.): | 6 |
Supported Qty Of LEDs (Max.): | 6 |
Additional Chassis Specifications: | |
Audio Support: | HD (Combo) |
PSU Max. Length: | 200mm |
CiT Celsius ARGB Dual-Ring Infinity Fan Specification: | |
Dimensions: | 120 x 120 x 25mm |
Fan Frame Colour: | Black |
Fan Blades / Colour : | 9 / Semi-Transparent White |
LED Qty / Type: | 21 / ARGB |
Bearing Type: | Hydraulic Bearing |
Fan Speed: | PWM 800 - 1500 RPM |
Max. Airflow: | 30.46 CFM |
Max. Static Air Pressure: | 0.99mm-H2O |
Noise Level (Max.): | 15.98 dBA |
Cable Length: | 550mm |
Accessories: | Screws |
Connectors: | SATA, 4pin Male Fan connector, 4pin female fan connector (passthrough), 3pin male AURA 3pin female AURA (passthrough) |
Rated Voltage: | 12V |
Rated Current (Max.): | 0.1A |
Rated Input Power: | 1.2W |
Test Voltage: | 12V |
Start Voltage: | 3.5V |
M.T.B.F: | 30,000 Hours |
Case Specifications
Form Factor: | Micro ATX |
Motherboard Support: | Micro ATX, Mini ITX |
PSU Support: | Standard ATX |
PSU Location: | Bottom |
Gaming Case: | Yes |
Water Cooling: | Water Cooling Ready! Supported Radiator Size: 360mm Supported Radiator Positions: Top |
Body Material: | 0.65mmSPCC |
Front Bezel Material: | Tempered Glass |
Side Panel: | Tempered Glass |
Internal Cable Management Depth: | 55mm |
External Bays: | |
Internal Bays: | 2 x 3.5” Internal 3 x 2.5” Internal |
Drive Bay Notes: | 2 x 2.5" share 3.5" bay |
Expansion Slots: | 4 x Full Size |
Cooling Front: | None |
Cooling Top: | Space For 3 x 120mm or 2 x 140mm Fans |
Cooling Rear: | Space For 1 x 120mm Fan (Bundled To Fit) |
Cooling Side: | Space For 2 x 120mm Fans (On Motherboard Plate - Bundled To Fit) |
Cooling Bottom: | Space For 3 x 120mm or 2 x 140mm Fans |
Fan Controllers: | 1 Fan Controllers, controlling up to 6 fans in total |
IO Ports: | 1 x USB 3.0 1 x USB 2.0 1 x HD Audio 1 x Microphone |
GPU Max Length: | 400mm |
CPU Cooler Maximum Height: | 157mm |
Front Bezel Colour: | Black / Glass |
Body Colour: | Black |
System Cabinet Features: | |
PSU Included: | No |
General Specifications
Manufacturer Part Number: | CIT-CONCEPT-B |
EAN Number: | 5055492414328 |
Has Mains Plug: | No |
Colour: | Black |
What's In The Box: | Case Accessories 3 x CiT Celsius Infinity 120mm ARGB Dual-Ring Black Fans |
Unit (Product) Dimensions (mm): | 278mm x 377mm x 416mm (W x H x D) |
Packaging Dimensions (mm): | 340mm x 490mm x 435mm (W x H x D) |
Net Weight (KGs): | 5.2 KGs |
Gross Weight (KGs): | 6.5 KGs |
Part Number | CSCITCONCEPTBLK |
---|---|
EAN / UPC | 5055492414328 |
