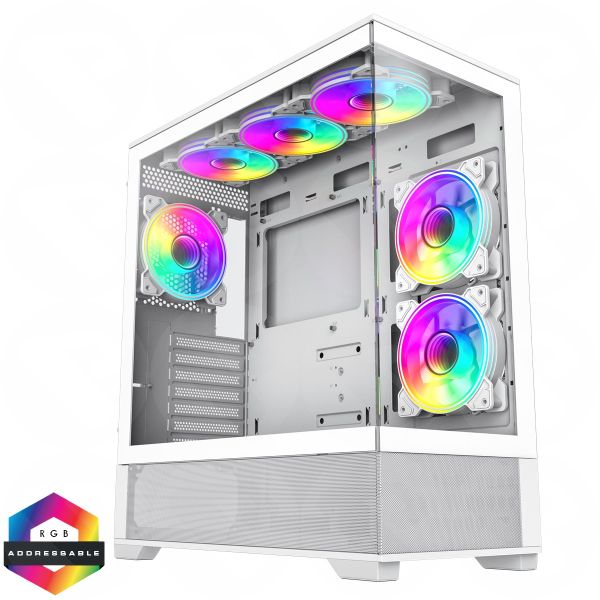

GameMax Vista White ATX Gaming Case with Tempered Glass Front and Side Panels with 6 x Dual-Ring Infinity Fans Bundled
The GameMax Vista Series is the next evolution in PC cases, the latest innovation from GameMax is available in a Micro-ATX and ATX form factor. Leave nothing to the creative power on the Vista with its front and side tempered glass panels alongside the strategic placement of your all-important components your PC building skills will be on full display.
The Vista chassis creates a perfect picture frame for your Motherboard and GPU and surround them from all angles with high-performance fans. Install up to a huge nine 120mm fans, together with up to three radiators. Whats more with the entire bottom of the chassis made from ultra fine mesh, the Vista will have plenty of fresh air running through it. This case features ample cable management options and with a separate power supply compartment it is ideal for tucking cables and keeping your power supply hidden away.
Moving onto the top of the case the I/O panel provides USB3.0 and USB2.0 connections and inside the Vista we have included the GameMax Version 4.0 PWM ARGB hub with controls for your LED lighting and have access to approximately 368 LED modes or have access to 16.8 million colours using a compatible addressable RGB Motherboard.
This completely white interior has massive build potential with a spacious open interior and large capacity to build a high-powered dynamic gaming pc. It can fit a graphics card up to 41 centimetres in length, CPU Cooler up to 16.5 centimetres in height and can hold 2 x 2,5 and 2 x 3,5 drives. An ATX power supply unit measuring up to 270mm will fit inside.
Boost your aesthetic with the Vista and with its advanced design create a special gamers case with its striking design this chassis is both stylish and boasts a high-performance, it is in a different class.
The Vista comes in multiple configurations - this version is the 6-Fan that comes bundled with 6 x Infinity 120mm ARGB Dual-Ring White Fans. There are also the 3-Fan version and the blank canvas version, which leaves it open for you to fit the fans you want where you want.
Key Features
- Six Infinity 120mm ARGB Dual-Ring White Fans Bundled - This version of the GameMax Vista comes bundled with 6 x Infinity 120mm ARGB Dual-Ring White Fans - Perfect for great cooling when planning to use an AIO Cooler, as this virtually maximises your cooling setup. With the Dual-Ring and the circular-shaped, multi-layer Infinity Mirror Design, the Infinity fans add a mesmerising LED lighting display to the Vista. Please note the fans are included inside the box only and will need to be installed.
- Showcase Your Build - The GameMax Vista is a superb case to showcase your building skills. With a unique and stylish design with dual tempered glass panelling on the front and side of the chassis allows you to have an unobstructed view of your gaming hardware letting you construct a gaming PC that looks good from every angle.
- Ultra Fine Mesh - This ultra-modern ATX chassis finished in all black not only has a panoramic design but is smart with amazing cooling and ventilation. The mesh panelling at the bottom allows air to flow into the case easily without obstruction combining a super airflow performance with dust filtration. This case has the perfect design from the outside to inside keeps the internal hardware at low temperatures.
- Outstanding Cooling - Support for up to nine fans in total Top: 3 x 120mm or 2 x 140mm Fans, Motherboard: 2 x 120mm Fans, Rear: 1 x 120mm Fan & PSU Shroud: 3 x 120mm Fans. The ATX casing can also house a 360mm radiator at the top keeping the internal temperature at an optimum level.
- Top Panel I/O - Puts your connections within easy reach including 2 x USB2.0 and 1 x USB3.0 Ports and a combination audio/microphone jack.
- GameMax V4.0 ARGB PWM Hub Included - A 9-port ARGB PWM Hub is included inside the Vista with 8-ports available to connect 3 or 4pin cooling fans and 1-port available to connect to a CPU cooler fan. Designed with a magnetic bottom the hub can be installed anywhere inside the chassis to accommodate your build. Prepare for anything with three options of controlling your ARGB, first option is linking the LED or reset switch for manual control, second option is using the included RF remote controller and third option is using Motherboard software with 5V ARGB Aura Sync support.
- PWM Intelligent Temperature Control - The GameMax Version 4.0 PWM ARGB hub can be connected to CPU fan interface on your chosen Motherboard to access temperature readings. The Hub adjusts the fans automatically based on the CPU temperature, when getting hotter increasing their speed to swiftly cool it down and when the CPU temperature decreases the fans automatically slow reducing the overall noise.
- Motherboard Software - The ARGB lighting effects can be synced through the Motherboard which supports ARGB function, 5V 3-Pin Addressable RGB header, including ASUS AURA, MSI Mystic Light, Gigabyte Fusion 2.0 & ASRock. Customise the look with endless possibilities with 16.7 million static modes and 12 pre-set lighting effects.
- ATX Housing - Standing at 486mm high, 210mm wide and 421mm deep the Vista has a larger internal space and increased volume it can accommodate the latest powerful components with 410mm of clearance for GPUs and can facilitate CPU coolers up to 165mm tall.
- Dust Filters - Three removable dust filters located on the top, M/B plate and bottom help keeps the dust out of your gaming PC and enhances the cooling performance even further, they are easy to remove which makes them easy to clean.
Specifications
Chassis Dimensions (Excluding Fascia / Panels): | (W) 210 x (H) 470 x (D) 421mm |
Water Cooling Support: | |
Top Supported Radiator(s): | 120mm, 240mm, 280mm and 360mm |
Rear Supported Radiator(s): | 120mm |
Other Supported Radiator(s): | 120mm and 240mm (Motherboard Plate) |
Fan Controller Support: | |
Fan Controller Included: | Yes |
Fan Controller Power Via: | SATA Connector |
LED Controller: | Yes |
Fan Power Connector: | 4pin PWM or 3pin |
LED Power Connector: | 3pin AURA |
Fan Control Via: | RF Remote / Reset Button (If Connected) |
ARGB Device Supported Qty: | 9 |
CPU Cooler Connector Qty: | 1 |
Fan Connectors Qty: | Fan Connectors Qty |
Additional Chassis Specifications: | |
Motherboard Support: | Mini iTX, Micro ATX, ATX or E-ATX (if no fans on motherboard plate) |
Audio Support: | HD (Combo Port) |
PSU Max. Length: | 270mm |
Packaging Type: | EPE Foam |
Packaging Thickness: | 35.40mm |
Infinity 120mm ARGB Dual-Ring White Fan Specification: | |
Dimensions: | 120 x 120 x 25mm |
Fan Frame Colour: | White |
Fan Blades / Colour: | 9 / Semi-Opaque White |
LED Qty / Type: | 16 Plus 8 (Outer Plus Inner) / ARGB |
Bearing Type: | Rifle Bearing |
Fan Speed: | 1200 RPM Plus/Minus 10 Percent |
Max. Air Flow: | 47 CFM Plus/Minus 10 Percent |
Max. Static Air Pressure: | 1.53mm-H2O |
Noise Level (Max.): | 30.0 dBA |
Cable Length: | 450mm |
Accessories: | Screws |
Connectors: | 3pin (Addressable) AURA Connector / 3pin (Addressable) AURA (Male) Link Connector / 3pin Power Connector |
Rated Voltage: | 12V For Fan Motor |
Rated Current: | 0.15A (Max. 0.25A) |
Rated Input Power: | 2.28W (Max. 3.0W) |
Test Voltage: | 12V |
Start Voltage: | 5V |
M.T.B.F: | 30,000 Hours |
Case Specifications
Form Factor: | Midi Tower |
Motherboard Support: | ATX, Micro ATX, Extended ATX, Mini ITX |
PSU Support: | Standard ATX |
PSU Location: | Bottom |
Gaming Case: | Yes |
Water Cooling: | Water Cooling Ready! Supported Radiator Size: 360mm Supported Radiator Positions: Top |
Body Material: | SPCC0.92mm |
Front Bezel Material: | Tempered Glass & Mesh |
Side Panel: | Tempered Glass & Mesh |
Internal Cable Management Depth: | 20mm |
External Bays: | |
Internal Bays: | 2 x 3.5” Internal 2 x 2.5” Internal |
Drive Bay Notes: | 1 x 2.5" shared with 1 x 3.5" |
Expansion Slots: | 7 x Full Size |
Cooling Front: | None |
Cooling Top: | Space For 3 x 120mm or 2 x 140mm Fans (Bundled to Fit) |
Cooling Rear: | Space For 1 x 120mm Fan (Bundled to Fit) |
Cooling Side: | Space For 2 x 120mm Fans (On Motherboard Plate - Bundled to Fit) |
Cooling Bottom: | Space For 3 x 120mm Fans |
Fan Controllers: | 1 Fan Controllers, controlling up to 8 fans in total |
IO Ports: | 1 x USB 3.0 2 x USB 2.0 1 x HD Audio 1 x Microphone |
GPU Max Length: | 410mm |
CPU Cooler Maximum Height: | 165mm |
Front Bezel Colour: | White / Glass |
Body Colour: | White |
System Cabinet Features: | |
PSU Included: | No |
General Specifications
Manufacturer Part Number: | GMX-VISTA-AW-6 |
EAN Number: | 5055492414595 |
Has Mains Plug: | No |
Colour: | White |
What's In The Box: | Case 6 x Infinity 120mm ARGB Dual-Ring White Fans V4.0 ARGB PWM Fan Hub Manual Screws |
Unit (Product) Dimensions (mm): | 210mm x 486mm x 421mm (W x H x D) |
Packaging Dimensions (mm): | 284mm x 502mm x 557mm (W x H x D) |
Net Weight (KGs): | 7.7 KGs |
Gross Weight (KGs): | 9.3 KGs |
Part Number | GMX-VISTA-AW-6 |
---|---|
EAN / UPC | 5055492414595 |
