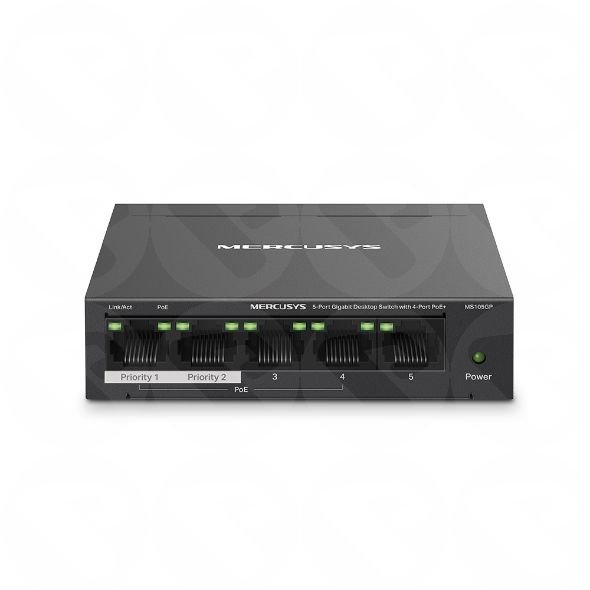

Mercusys (MS105GP) 5-Port Gigabit Desktop Switch with 4-Port PoE+, Steel Case

Pcode

30653

£29.00

In stock

5-Port Gigabit Desktop Switch with 4-Port PoE+

Full Gigabit Ports: 5× 10/100/1000 Mbps RJ45 ports
Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
Isolation Mode: One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
Durable Metal Casing: Allows for efficient heat dissipation and long network life
Plug and Play: Simple to use and saves time and effort

Dimensions

99.8*98*25mm

PoE Ports

RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W

Interfaces

5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply

External Power Adapter (Output: 53.5V/1.31A)

Installation

Desktop

Wall Mount

Standards and Protocols

IEEE 802.3x Flow Control

Data Rates

10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex

Jumbo Frame

9 KB

Mac Address Table

Max Power Consumption

3.13W（220 V / 50 Hz, no PD connected）

75.15W（220 V / 50 Hz, with 65W PD connected）

Max Heat Dissipation

10.64 BTH/h （no PD connected)

255.51 BTH/h（with 65W PD connected）

Package Contents: • 5-Port Gigabit Desktop Switch with 4-Port PoE+(MS105GP)
• Power Adapter
• Quick Installation Guide
Environment: Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing

Part Number	MS105GP
EAN / UPC	6957939001193
